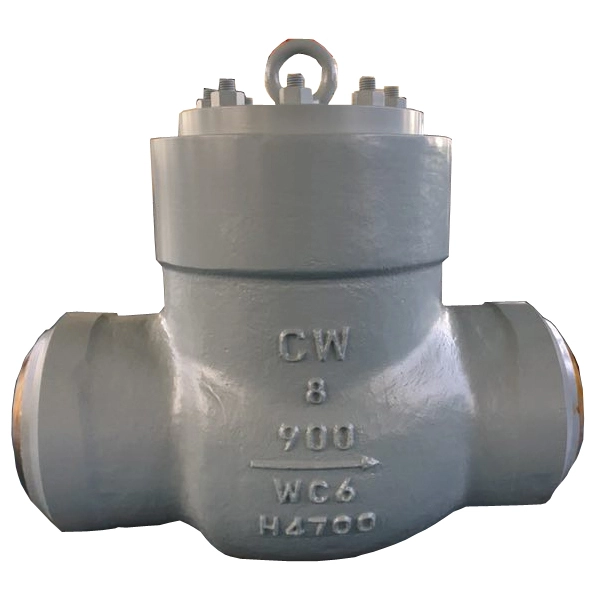

WC6 High temperature high pressure seal BW check valve
- Valve type: check valve
- Port size:8''
- Pressure:900LB
- Material:WC6
- End: Butt Weld
- Operation: Hand wheel
- Application: power plant steam pipeline
- Medium temperature:480 °C
Product description:
BS 1868 design standard
Face to face dimensions:by customer
Pressure test: API 598
Temperature: -29 ~ 538°C
Body materia:A217 WC6
Disc and seat ring:A182 F11+STL 6
Pressure Seal
Seat ring with stellite overlay and installed with seal weld.
RT (Radiographic Testing) for end weld parts
Prolonged function and more compact valves characterized by light weight, small volume and less maintenance, specifically designed for the high temperature and the high pressure services encountered in nuclear and fossil
fuel power plants.
BS 1868 design standard
Face to face dimensions:by customer
Pressure test: API 598
Temperature: -29 ~ 538°C
Body materia:A217 WC6
Disc and seat ring:A182 F11+STL 6
Pressure Seal
Seat ring with stellite overlay and installed with seal weld.
RT (Radiographic Testing) for end weld parts
Prolonged function and more compact valves characterized by light weight, small volume and less maintenance, specifically designed for the high temperature and the high pressure services encountered in nuclear and fossil
fuel power plants.
