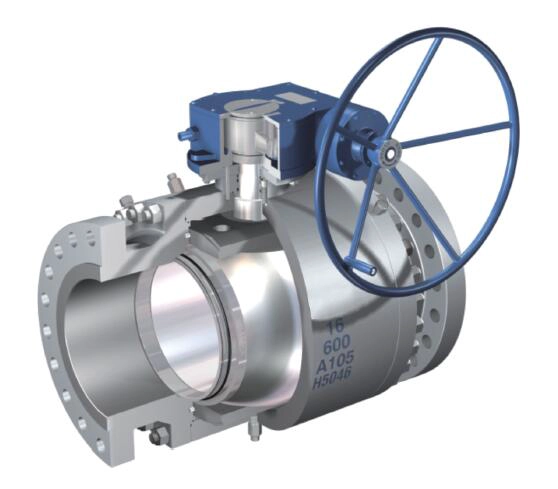

Worm gear operated  6'' 1500LB A182 F51 trunnion mounted full port RF ball valve

Worm gear operated 6'' 1500LB A182 F51 trunnion mounted full port RF ball valve

  • Valve type: Ball valve
  • Port size:6''
  • Pressure:1500LB
  • Material: A182 F51
  • End: RF
  • Operation: Worm gear
  • Application: corrosion mediums
  • Medium : corrosion mediums
  • Working temperature: normal

Product description:

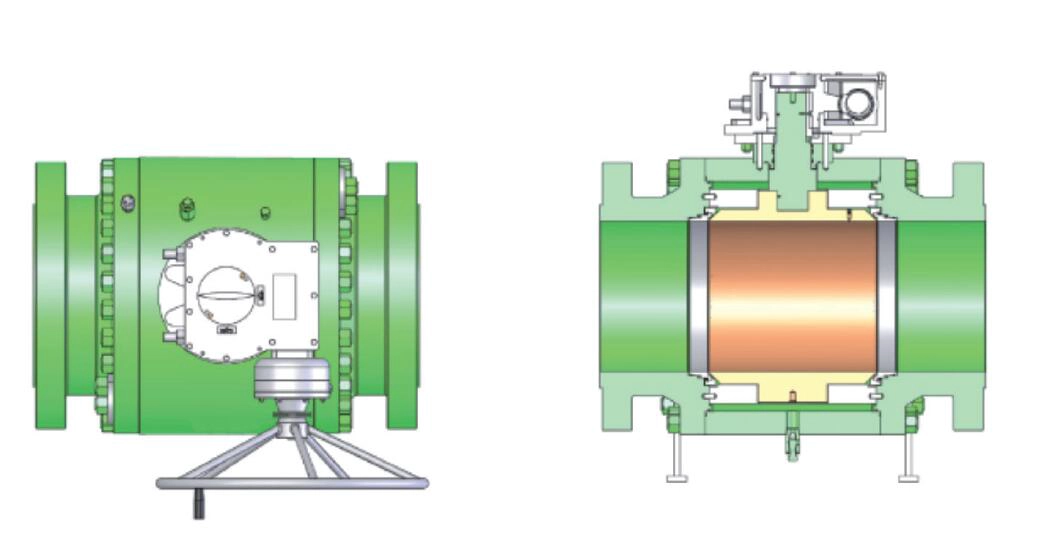

3PCforged trunnion ball valve RF end structure






Designstandards:

ASMEB16.34/API6D design standard

API6D/ISO 15848 or API 598 testing and inspection standard

ASMEB16.5 flange end standard

ASME16.25 welded end standard

ASMEB16.1/ API6D face to face standard

API 607fire safety standard

NACEMR0175 acid environment standard



Designfeatures

1. valveis designed in accordance with ASME B16.34,API6D,ASME B16.10,ASME B16.25,BS5351

2.O-ringssealing room temperature hard seal ball valve is applied in temperature of-29~200℃。

3.Graphitesealing high temperature hard seal ball valve is applied in temperature of-29~425°C.It is based on valve body material and seal material to choose usingtemperature

4.Valveseat is sealed with bellows-like elastic structure to effectively avoiding thevalve seal face leakage due to pressure and high temperature

.......

For moredetails please contact with cowinns sales department.
