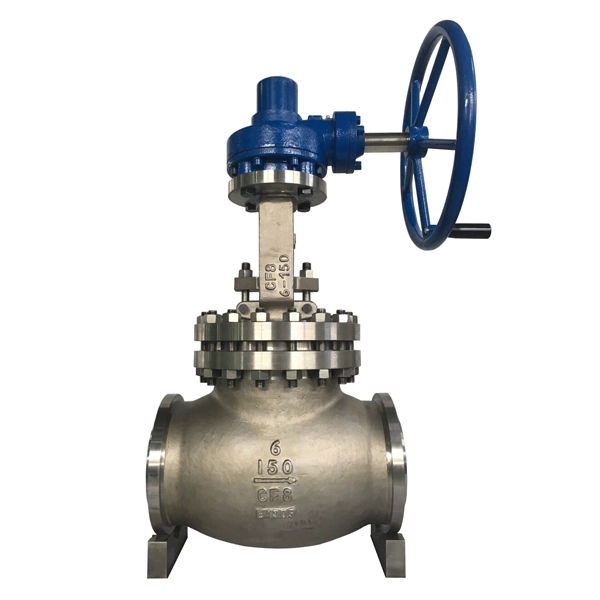

Handle wheel operated 6'' 150LB ASTM A351 CF8 BW connection bellow sealed globe valve
- Valve type: Globe valve
- Port size:6''
- Pressure:150LB
- Material: ASTM A351 cf8
- End: BW
- Operation: Handle wheel
- Application: Chemical industry
- Working temperature: normal
Product description:
Cowinns Bellow sealed valves
Design standard :ASME B 16.34
Face to face: ANSI B 16.10
Test and inspection standard :API 598
Size:1/2''-12''(15-300mm)
Classes:150-2500LB
Materials: Carbon, stainless, alloy, nickel alloy steel
Features:
1.Bellow seal element. The key part of bellow sealed globe valves is mental bellow. It is the connection between cover and stem with automatic roll welding. The mental bellow can keep the stem part no leakage.
2.Benefit from the con and streamline shape design, the disc has a reliable seal and longer service life.
3.Double seal design(bellows + packing). Bellow and packing can protect against leakage and provide a excellent seal.
4.Grease nipple. It can direct lubricate the stem, nut and sleeve.
5.Ergonomic hand wheel. It provide longer service life and easier operation
6.Application temperature :-196°C~600°C
Cowinns Bellow sealed valves
Design standard :ASME B 16.34
Face to face: ANSI B 16.10
Test and inspection standard :API 598
Size:1/2''-12''(15-300mm)
Classes:150-2500LB
Materials: Carbon, stainless, alloy, nickel alloy steel
Features:
1.Bellow seal element. The key part of bellow sealed globe valves is mental bellow. It is the connection between cover and stem with automatic roll welding. The mental bellow can keep the stem part no leakage.
2.Benefit from the con and streamline shape design, the disc has a reliable seal and longer service life.
3.Double seal design(bellows + packing). Bellow and packing can protect against leakage and provide a excellent seal.
4.Grease nipple. It can direct lubricate the stem, nut and sleeve.
5.Ergonomic hand wheel. It provide longer service life and easier operation
6.Application temperature :-196°C~600°C
