Cowinns one-piece wafer or lug soft seal butterfly valves were designed with extended neck and concentric disc and seat configuration. One-piece designed valve stem was mechanically retained
in the body neck and no part shall be exposed to the line media. Valve seat was encapsulate d with body totally ,it will ensure body isolated from the line media, and no flange gaskets were required.

Design features:
Simple and compact construction, quick 90° on-off operation
Small size and light weight
Easy installation and maintenance
Minimized operating torque, energy saving
Bubbles tight sealing with no leakage under the pressure testing
Long service life ,standing the test of tens of thousands opening/closing operations.
Flow curve tending to straight line, excellent regulation performance.

Products range
Size:1 1/2''~48''
Rating: ANSI 150LB
Main Body materials: Carbon Steel, Cast Iron, Stainless steel, C95800,C95400,C95500.
Operation: Lever, Gear, Pneumatic, Electric operator.

Soft seal butterfly valve

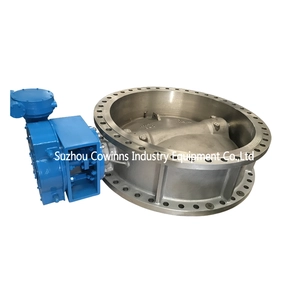

China stainess steel butterfly valve manufacturer

stainess steel butterfly valve

DN1600 PN16 CF8 + EPDM seat double flange worm gear handle wheel butterfly valve Product description: Design standard: EN 593 End: double RF flange Op... More

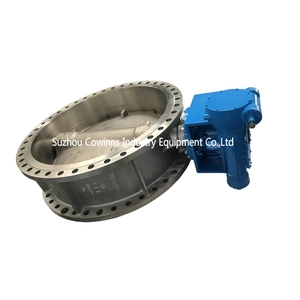

China DN1600 PN16 CF8 + EPDM seat double flange worm gear handle wheel butterfly valve manufacturer

DN1600 PN16 CF8 + EPDM seat double flange worm gear handle wheel butterfly valve

DN1600 PN16 CF8 + EPDM seat double flange worm gear handle wheel butterfly valve Productdescription: Design standard: EN 593 End: double RF flange Ope... More
China 12'' 150LB C95800 PTFE seat wafer type handle wheel butterfly valve manufacturer

12'' 150LB C95800 PTFE seat wafer type handle wheel butterfly valve

Product description: API 609 design standard Features: Resilient seated Tightly shut off Bi-directional service Self cleaning Blow-out proof shaft Do... More
China 4'' 150LB C95800 PTFE seat wafer type handle wheel butterfly valve manufacturer

4'' 150LB C95800 PTFE seat wafer type handle wheel butterfly valve

Product description: API 609 design standard Features: Resilient seated Tightly shut off Bi-directional service Self cleaning Blow-out proof shaft Do... More
China 6'' 150LB C95800 lug wafer type handle wheel with worm gear operated butterfly valve manufacturer

6'' 150LB C95800 lug wafer type handle wheel with worm gear operated butterfly valve

Product description: API 609 design standard  Features: Resilient seated Tightly shut off Bi-directional service Self cleaning Blow-out proof shaft Do... More

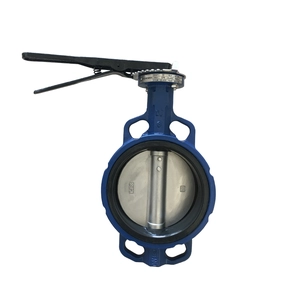

China 4'' 150LB ductile iron viton lined soft sealed wafer type butterfly valve manufacturer

4'' 150LB ductile iron viton lined soft sealed wafer type butterfly valve

Valve type:Butterfly valve
Port size:4''
Pressure:150LB
Material: Ductile iron lined viton
End: wafer
Operation: Level operated
Application: Shell oil pipeline
Medium temperature: diesel
Working temperature:-20°C~200°C More
