stainess steel butterfly valve

stainess steel butterfly valve

  • Valve type: Butterfly valve
  • Port size:DN1600
  • Pressure:PN16
  • Material:A351 CF8+EPDM
  • End: double flange
  • Operation: Worm gear
  • Application: drinkable water
  • Medium temperature: Normal

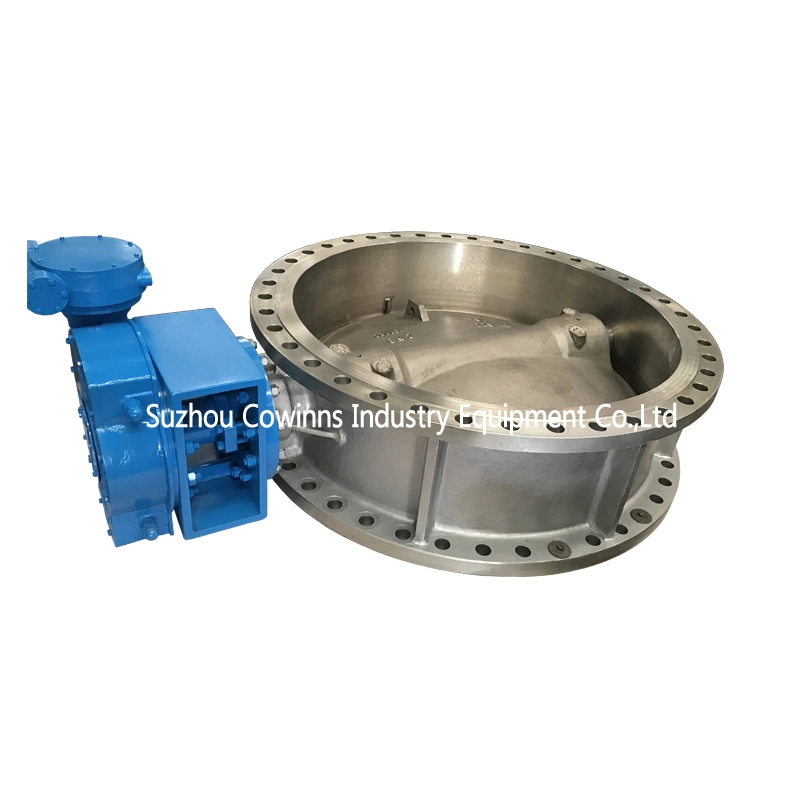

DN1600 PN16 CF8 + EPDM seat double flange worm gear handle wheel butterfly valve

Product description:

Design standard: EN 593

End: double RF flange

Operate: Worm gear

End to end dimension: EN 558-1

Flange dimension: EN 1092-1

Pressure test: EN 12266 -1


The butterfly valve comply with the characteristics required by Ministerial Decree 174/2004.

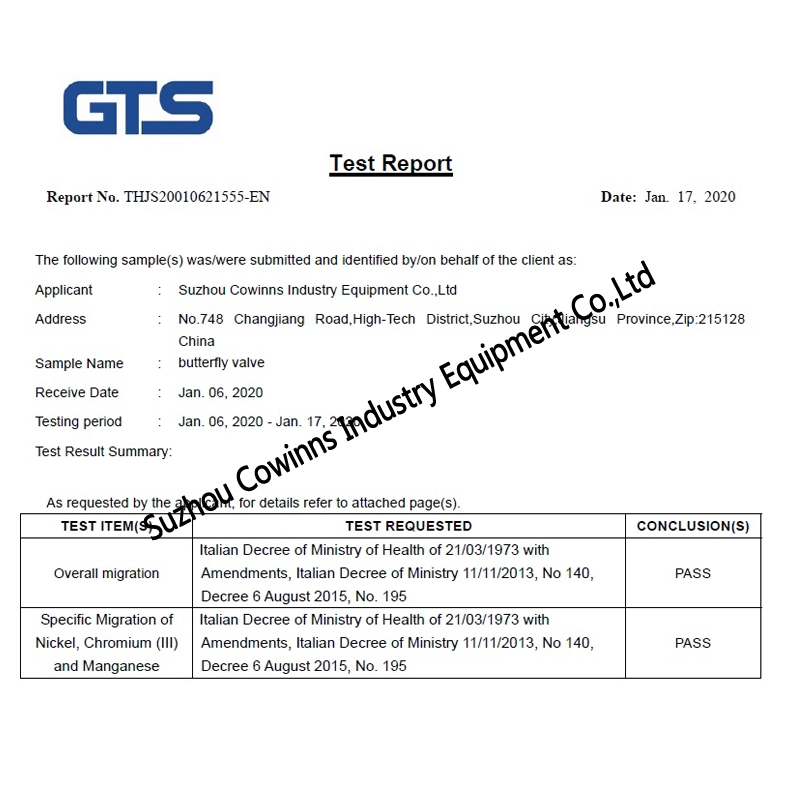

Material test certificates (for more details please contact sales department for drawing and test reports):

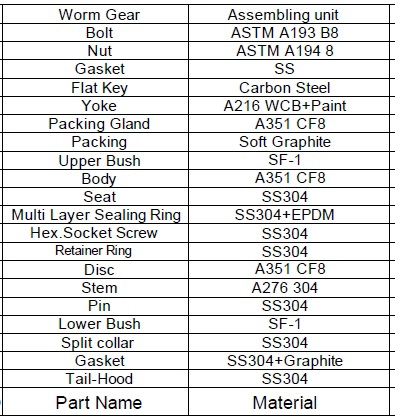

Material list:

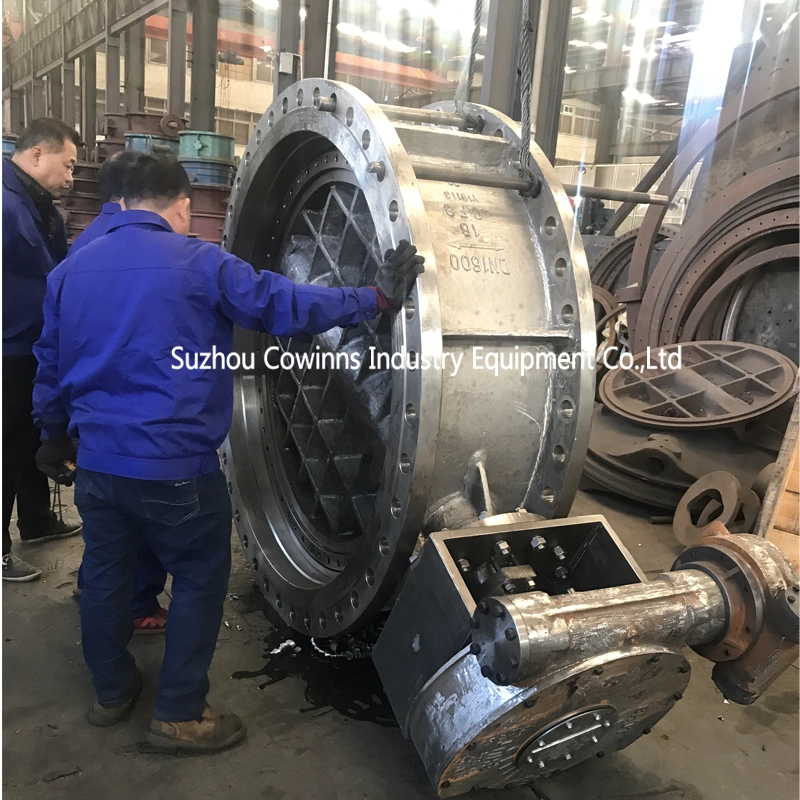

Assemble







package


Cowinns Industry Equipment Co.,Ltd

PDF Show:PDF
