Valve material and application (code, temperature, pressure, medium corresponding to the material)

  • Author:Cowinns
  • Source:Cowinns
  • Release on:2020-10-19
Valve material and application (code, temperature, pressure, medium corresponding to the material)

Valves are indispensable components in various industrial fields. The proper application of valve materials directly affects the service life of the valve and the safe operation of production. For example, corrosion-resistant materials are mostly used in harsh production environments. How to apply these materials correctly and give full play to the functions of the materials to adapt to the requirements of the corresponding working conditions is very important.

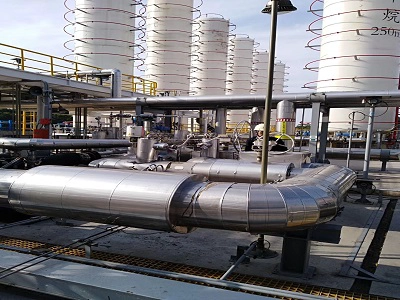

valve application.jpg

WCB carbon steel ASTM A216 non-corrosive applications, including water, oil and gas, temperature range: -30 ℃ to +425 ℃

LCB low temperature carbon steel ASTM A352 low temperature applications, the temperature is as low as -46 ℃ cannot be used for temperatures higher than +340 ℃ occasions

LC3 3.5 of% nickel steel ASTM A352 cryogenic applications, temperatures as low as -101 °C to a temperature not higher than + 340 ℃ occasions

WC6 1.25% Cr 0.5% Mo steel ASTM A217 non-corrosive applications, including water, oil and gas, Temperature range: -30℃ to +593℃

WC9 2.25 chromium ASTM A217 non-corrosive applications, including water, oil grade WC9 and gas, temperature range: -30℃ to +593℃ C5 5% chromium 0.5% molybdenum ASTM A217 mild corrosion For corrosive or corrosive applications and non-corrosive applications, temperature range: -30°C to +649°C

C12 9% chromium 1% molybdenum ASTM A217 slightly corrosive or corrosive applications and non-corrosive applications, temperature range: -30°C CA6NM (4) 12% chromium steel ASTM A487 corrosive application to +649℃ , temperature range: -30℃ to +482℃CA15 (4) 12% chromium ASTM A217  Corrosive application, temperature range up to +704℃

CF8M 3 16 stainless steel ASTM A351 corrosive or ultra-low or high temperature non-corrosive application, temperature range: -268℃ to +649℃, temperature above +425℃ should specify carbon content 0.04% and the above

CF8C 347 stainless steel ASTM A351 is mainly used for high temperature and corrosive applications, the temperature range: -268℃ to +649℃, the temperature above +540℃ should specify the carbon content of 0.04% and above

CF8 304 stainless steel ASTM A351 corrosive or ultra-low temperature or high temperature Non-corrosive applications, temperature range: -268°C to +649° C +425°C or above, carbon content 0.04% and above must be specified.

CF3 304L stainless steel ASTM A351 corrosive or non-corrosive applications, temperature range up to +425°C CF3M 316L stainless steel ASTM A351 is corrosive or non-corrosive application, the temperature range is as high as +454℃.

CN7M alloy steel ASTM A351 has good resistance to hot sulfuric acid corrosion, and the temperature is as high as +425℃.

M35-1 Monel ASTM A494 can be welded. It has good resistance to corrosion by all common organic acids and salt water. It also has a high resistance to corrosion in most alkaline solutions, and the temperature is as high as +400℃.

N7M Hastelloy B ASTM A494 is especially suitable for treating hydrofluoric acid with various concentrations and temperatures. It has good resistance to sulfuric acid and phosphoric acid corrosion, and the temperature is as high as +649℃.

CW6M Hastelloy C ASTM A494 has good resistance to corrosion in strong oxidation environments. It has good characteristics at high temperatures, and has high corrosion resistance to formic acid (formic acid), phosphoric acid, sulfurous acid and sulfuric acid. The temperature is as high as +649°C.

CY40 Inconel ASTM A494 performs well in high temperature applications. It has good corrosion resistance for strong corrosive fluid media.

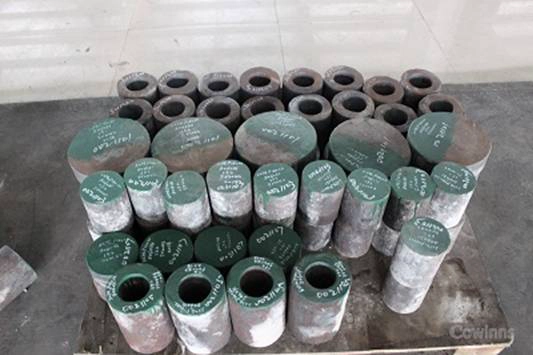

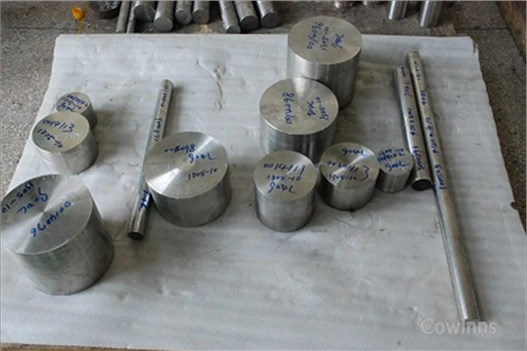

raw material 01.jpg

1. Gray cast iron: Gray cast iron is suitable for water, steam, air, gas and oil with a nominal pressure of PN≤1.0MPa and a temperature of -10℃~200℃. The commonly used grades of gray cast iron are: HT200, HT250, HT300, HT350.

2. Malleable cast iron: suitable for water, steam, air and oil media with a nominal pressure of PN≤2.5MPa and a temperature of -30~300℃. Commonly used grades are: KTH300-06, KTH330-08, KTH350-10.

3. Ductile iron: suitable for water, steam, air and oil with PN≤4.0MPa and temperature of -30~350℃. Commonly used grades are: QT400-15, QT450-10, QT500-7.
In view of the current level of domestic technology, each factory is uneven, and users are often difficult to inspect. According to experience, it is recommended that PN≤2.5MPa, and the valve should be made of steel for safety.

4. Acid-resistant high-silicon ductile iron: suitable for corrosive media with nominal pressure PN≤0.25MPa and temperature below 120℃.

5. Carbon steel: suitable for water, steam, air, hydrogen, ammonia, nitrogen and petroleum products with a nominal pressure of PN≤32.0MPa and a temperature of -30~425℃. Commonly used grades are WC1, WCB, ZG25 and high-quality steel 20, 25, 30 and low-alloy structural steel 16Mn.

6. Copper alloy: suitable for water, sea water, oxygen, air, oil and other media with PN≤2.5MPa, and steam media with a temperature of -40~250℃, commonly used grades are ZGnSn10Zn2 (tin bronze), H62, Hpb59-1 (Brass), QAZ19-2, QA19-4 (Aluminum Bronze).

7. High temperature steel: suitable for steam and petroleum products with nominal pressure PN≤17.0MPA and temperature≤570℃. Commonly used grades are ZGCr5Mo, 1Cr5M0.ZG20CrMoV, ZG15Gr1Mo1V, 12CrMoV, WC6, WC9, etc. The specific selection must be in accordance with the valve pressure and temperature specifications.

8.Low-temperature steel: suitable for nominal pressure PN≤6.4Mpa, temperature≥-196℃, ethylene, propylene, liquid natural gas, liquid nitrogen and other media, commonly used brands) ZG1Cr18Ni9 , 0Cr18Ni9, 1Cr18Ni9Ti , ZG0Cr18Ni9

9.Stainless acid-resistant steel: applicable Under nominal pressure PN≤6.4Mpa , temperature≤200℃, nitric acid, acetic acid and other media, commonly used brands are ZG0Cr18Ni9Ti, ZG0Cr18Ni10, ZG0Cr18Ni12Mo2Ti , ZG1Cr18Ni12Mo2Ti

nickel-aluminum-bronze is a good material for seawater application.

Cowinns has good design and manufacturing experience  for nickel-aluminum-bronze ball valve which were supplied to seawater systems.



The relationship between valve material and temperature and pressure

1. The operating temperature of the valve The operating temperature of the valve is determined by the material of the valve. The service temperature of commonly used materials for valves is as follows:

valve

Operating temperature

Grey cast iron valve

-15~250℃

Malleable cast iron valve

-15~250℃

Ductile iron valve

-30~350℃

High nickel cast iron valve

The highest operating temperature is 400℃

Carbon steel valve

-29~450℃, in JB/T3595-93

Recommended operating temperature in the standard t<425℃

1Cr5Mo, alloy steel valve

The highest operating temperature is 550℃

12Cr1MoVA, alloy steel valve

The highest operating temperature is 570℃

1Cr18Ni9Ti, 1Cr18Ni12Mo2Ti stainless steel valve

-196~600℃

Copper alloy valve

-273~250℃

Plastic valve (nylon)

Maximum operating temperature 100℃

Plastic valve (chlorinated polyether)

Maximum operating temperature 100℃

Plastic valve (polyvinyl chloride)

Maximum operating temperature 60℃

Plastic valve (polytrifluorochloroethylene)

-60~120℃

Plastic valve (PTFE)

-180~150℃

Plastic valve (natural rubber diaphragm valve)

Maximum operating temperature 60℃

Plastic valve (nitrile rubber, neoprene diaphragm valve)

Maximum operating temperature 80℃

Plastic valve (fluorine rubber diaphragm valve)

Maximum use temperature 200℃

When rubber or plastic is used for valve lining, the temperature resistance of rubber and plastic shall prevail.

Ceramic valves, due to their poor temperature resistance, are generally used in working conditions below 150°C. Recently, a super-performance ceramic valve appeared, which can withstand high temperatures below 1000°C.

Glass valve. It has poor temperature resistance and is generally used in working conditions below 90°C.

The temperature resistance of the enamel valve is limited by the material of the sealing ring, and the maximum operating temperature does not exceed 150℃.

2. The pressure used by the valve

The operating pressure of the valve is determined by the material used to manufacture the valve.

valve

Maximum allowable nominal pressure

Grey cast iron valve

1MPa

Malleable cast iron valve

2.5MPa

Ductile iron valve

4.OMPa

Copper alloy valve

2.5MPa

Titanium alloy valve

2.5MPa

Carbon steel valve

32MPa

Alloy steel valve

300MP

Stainless steel valve

32MPa

Plastic valve

0.6MPa

Ceramic, glass, enamel valves

0.6MPa

FRP valve

1.6MPa

3. The relationship between valve temperature and pressure


The valve operating temperature and pressure have a certain internal connection and influence each other. Among them, temperature is the dominant factor affecting the valve. A valve with a certain pressure is only suitable for a certain temperature range, such as forged C95800 ball valve can be for normal temperature seawater and changes in valve temperature can affect the valve's operating pressure.


For example: the nominal pressure of a carbon steel valve is 10MPa, when the medium working temperature is 200℃, its maximum working pressure P20 is 10MPa; when the medium working temperature is 400℃, its maximum working pressure P40 is 5.4MPa; when the working temperature of the medium is 450℃, its maximum working pressure P20 is 4.5MPa.
