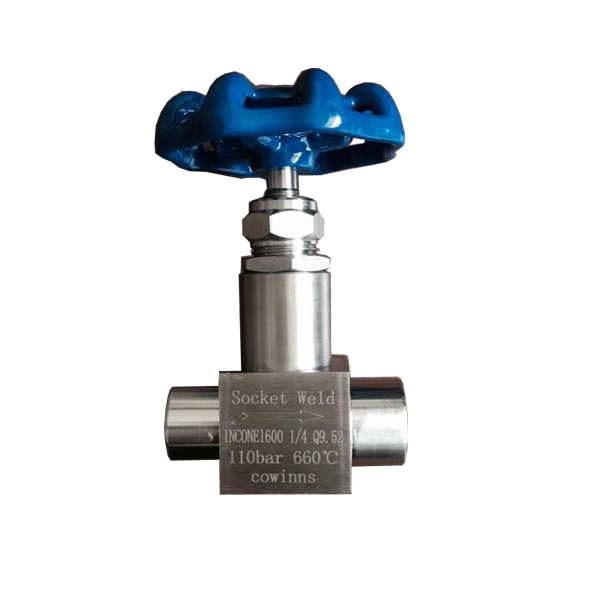

1/4’’ INCONEL 600 SW ends 110bar needle valve
- Valve type: Needle valve
- Port size:1/4''
- Pressure:110bar
- Material: nconel 600
- End: Socket Weld
- Operation: Hand wheel

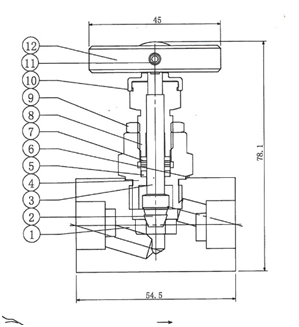

valve drawing
1.Valve design in accordance with ASTM B1.6.34
2.End to end dimensions to manufacturer standard.
3.Design pressure: 150bar
Valve parts material list for inconel600 :
|
Item |
Part No. |
Drawing No. |
Material |
Qty(pcs) |
Remarks |
|
1 |
Body |
-01 |
|
1 |
|
|
2 |
Cone Disc |
-02 |
SIL6 |
1 |
Bought-in component |
|
3 |
Stem |
-03 |
Inconel600 |
1 |
|
|
4 |
Packing gland |
-04 |
Inconel600 |
1 |
|
|
5 |
Packing shim |
-05 |
Inconel600 |
1 |
φ6*φ10*2 |
|
6 |
Pin |
φ3*15 |
Inconel600 |
1 |
Standard component |
|
7 |
Packing |
φ6*φ10*2 |
Flexible Graphite |
3 |
Bought-in component |
|
8 |
Packing nut |
-06 |
Inconel600 |
1 |
|
|
9 |
Thin hexagon nut |
M12*1.25 |
Inconel600 |
1 |
Standard componentGB/T 808 |
|
10 |
Dustproof cover |
-07 |
|
1 |
|
|
11 |
Inner hexagon screw |
M4*6 |
Inconel600 |
1 |
Bought-in standard component |
|
12 |
Handle |
-08 |
|
1 |
|
