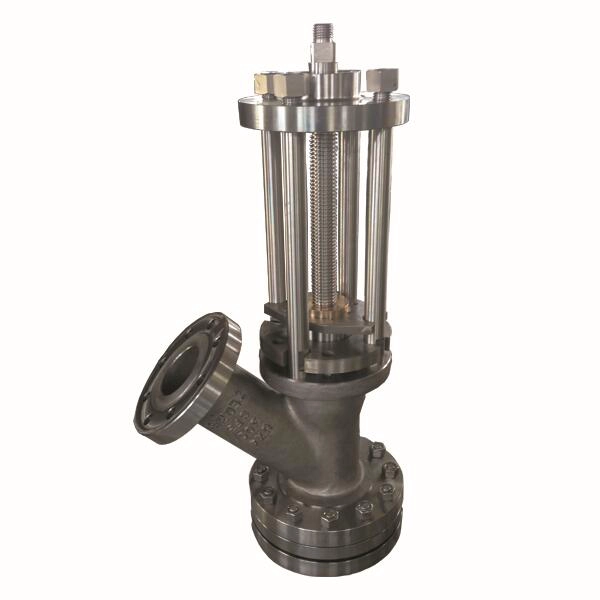

6''*4'' ASTM A351 CF3 300LB RF handle wheel +bevel gear operated Y type tank bottom valve

6''*4'' ASTM A351 CF3 300LB RF handle wheel +bevel gear operated Y type tank bottom valve

  • Valve type: bottom valve
  • Port size:6''*4''
  • Pressure:300LB
  • Material: ASTM A351 CF3
  • End: RF
  • Operation: Handle wheel + bevel gear
  • Application: Slurry
  • Medium temperature: normal

Design features

Design standard :ASME B16.34

End connection standard: ASME B16.5

Inspection and test: API598



Material list of main parts:

1.body: A351 CF3

2.cover:A182 F304L

3.Seat ring:A182 F304L+STL #6 overlay (hard facing treatment)

4.Stem:A182 +F304L

5.Piston: A182 F304L+STL #12 overlay (hard facing treatment)

6.Bolts and nuts:A193 B8,A194 8

7.Gland:A182 F304L

more information please contact with us.
