1/2'' 600LB  F51 RF full port floating bare stem ball valve

1/2'' 600LB F51 RF full port floating bare stem ball valve

  • Valve type: ball valve
  • Port size:1/2''
  • Pressure:600LB
  • Material:F51
  • Ball:F51
  • Seat: RPTFE
  • End:RF Flange

Technical Specification

Design Standard : API 608

Face to Face : ASME B 16.10

Flanged Size : ASME B 16.5

Test & Inspection : API598



The valve port sizes of serial valve connecting Flange and butt-welding terminal can be designed according to customer’s

request

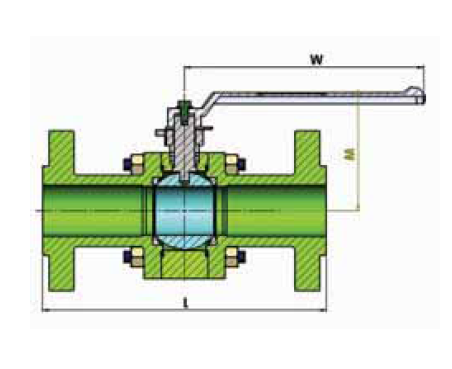

Forged floating ball valve RF end structure

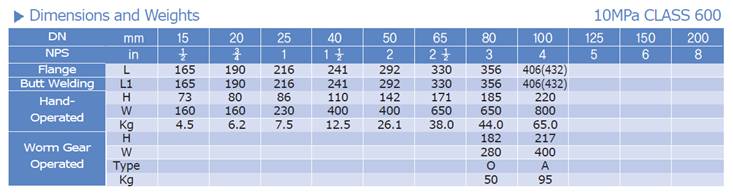

Dimensions and Weights table:
