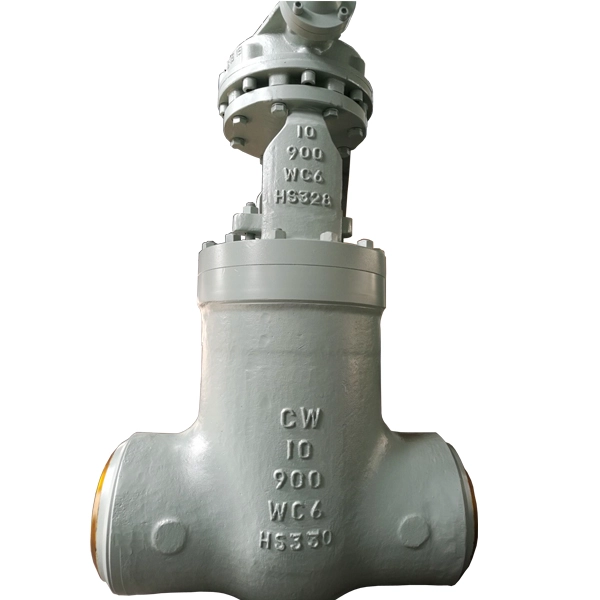

10'' 900LB A217 WC6 high temperature steam high pressure power plant butt weld gate valve

10'' 900LB A217 WC6 high temperature steam high pressure power plant butt weld gate valve

  • Valve type: Gate valve
  • Port size:10''
  • Pressure:900LB
  • Material:A217 WC6
  • End: Butt Weld
  • Operation: Hand wheel
  • Application: high temperature steam pipeline
  • Medium temperature:485 °C

Product description:

ASME B16.34 design standard

Pressure Seal, OS&Y, Rising Stem

Seat ring with stellite overlay and installed with seal weld.

RT (Radiographic Testing) for end weld parts

Flexible Wedge

The high pressure gate valves are normally installed in horizontal pipe runs with the valve stem vertically up. They can also be installed in vertical or horizontal pipe runs with the valve stem other than vertical, but special construction mat be required depending on valve size, service, conditions, and material. When purchasing valves for other than the normal installation, valve orientation should be specified.
