8'' 900LB WC6 pressure seal BW bypass gate valve

8'' 900LB WC6 pressure seal BW bypass gate valve

  • Valve type: gate valve
  • Port size:8''
  • Pressure:900LB
  • Material: A217 WC6
  • End: Butt Weld
  • Operation: Hand wheel
  • Application: power plant steam pipeline
  • Medium temperature:490 °C

Vlave description:

Body material:A217 WC6

Wedge:A217 WC6+TL6

Stem:A182 F6a

Seat Ring:F11+STL 6

Pin:A108 1035

Bonnet:F11+316

Packing: Flexible graphite

Seal ring:304+Graphite


Design and manufacturing standards:

Face to face dimensions :ASME B16.10

Flange end dimensions: ASME B16.25

Design and manufacture stand: API 600

Pressure test: API STD .598

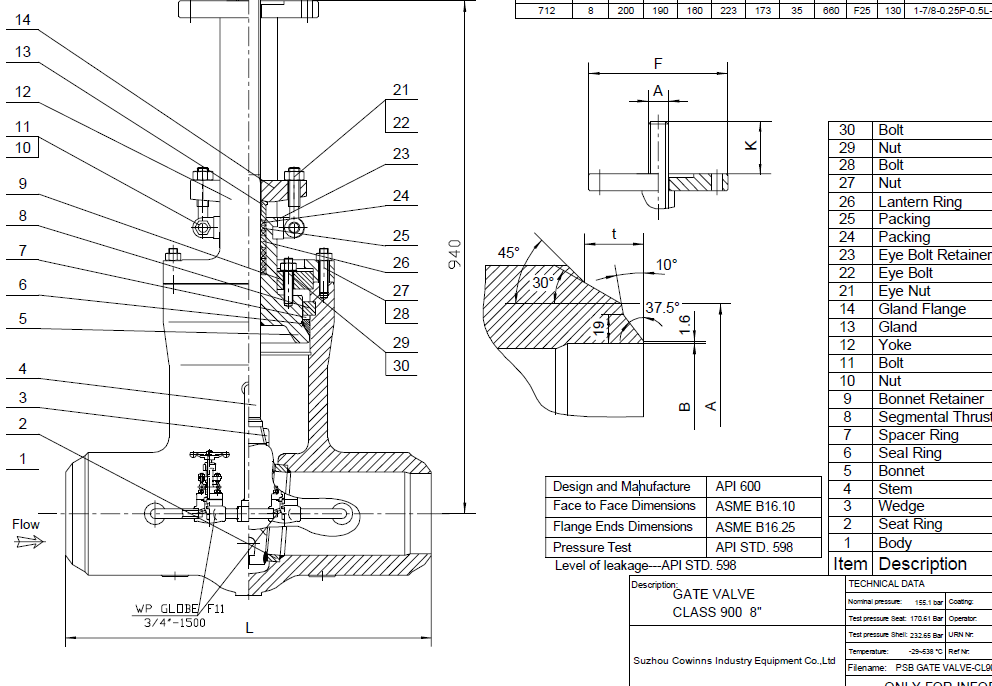

Valve drawing:

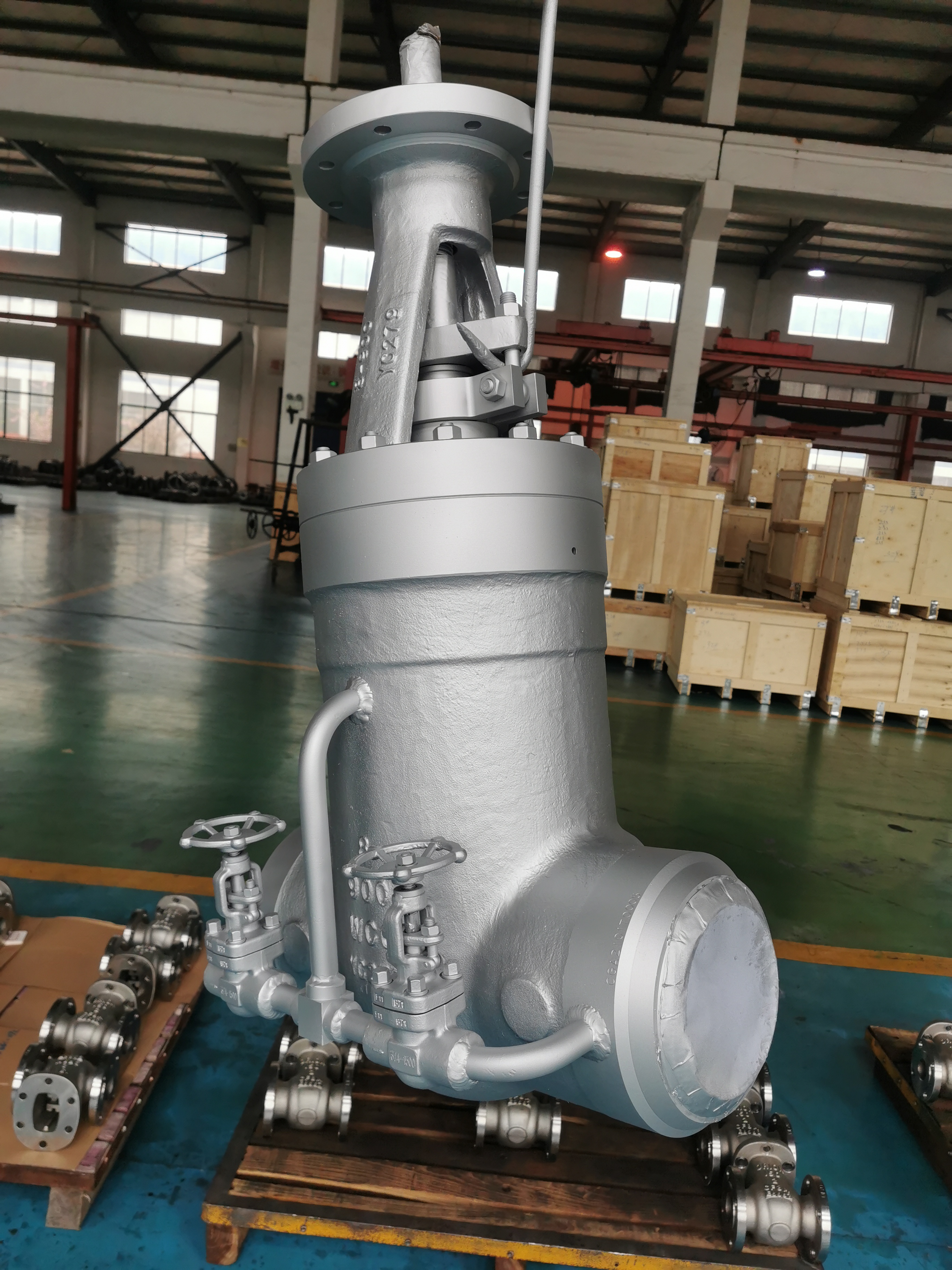

Valve after painting:
